OBDII EX Gauge Demo

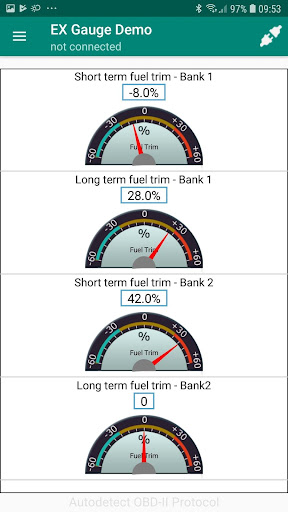

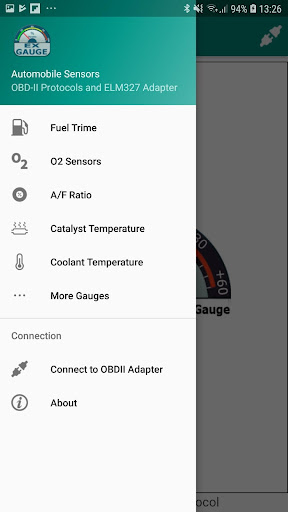

EX Gauge Demo Version 1.2.9Tool for every car (Gas and Diesel engine)Runs on Android Mobile and Tablet devicesRequirement:1. The car must be OBD-II compliant to use the tool2. A Bluetooth Adapter ELM327 or compatible3. The minimum Android OS is : 4.0.3 and higher4. The built-in bluetooth device on the phone(Tablet) must be enabled and paired with the bluetooth OBD-II adapterOBD-|| protocol:* The functionality of Auto detect the OBD-II protocol lets the app to be very easy to use* Displaying the description of the protocol used in the car SAE J1850 PWM (Ford) SAE J1850 VPW (GM) ISO 9141-2 (Chrysler, European, Asian) ISO 14320 KWP-2000 ISO CAN 15765 - 11bit, 29 bit, 250Kbaud, 500Kbaud (most models after 2008)Features: * Each sensor live data is shown in 2 formats: 1. By analog gauge - Shows the relative value 2. By Digits - Shows absolute value * This Application supports up to 49 different generic OBD-II sensors, these generic sensors are supported by most all cars * Gauges were divided into 6 groups, so they are convenient to manage and observe 1. Group of fuel trim gauges - up to 4 sensors 2. Group of O2 sensor gauges - up to 8 sensors 3. Group of air / fuel ratio gauges - up to 16 sensors 4. Group of Catalyst temperature gauges - up to 4 sensors 5. Group of Temperature gauge - up to 4 sensors 6. Group More - the rest of generic sensors - up to 12 sensorsNote: Each tap on the "More" Button the application shows maximum of 3 gauges. You have to tap several times to view all gauges if there are more gauges in the "More" Group Some statistics:In fact there is no car, that could support all these gauges(sensors), but only partial supports. A diesel car could support amount of gauges much more than a gas car A common gas car normally supports about 20 gaugesHow to use :Once you have the bluetooth OBD-II adapter plugged into the cars OBD-II ports and powered on, you need to connect to the cars system computer via that bluetooth adapter, by pulling down the option menu and select item "Connect to OBD-II Adapter", a dialog window will appears and shows a list of paired devices (one or more devices in the list), each paired device has two information as following: Name of paired bluetooth device (for example: obdii) Max address (for example: 77:A6:43:E4:67:F2) The Max address is used to distinguish two or more bluetooth adapters have the same name.You must choose your bluetooth OBDII device by select the correct its name (or its max address) in the list and click on the item, then the app starts connecting process and autodetects the OBD-II protocol.If the process finished successfully the protocol description will be displayed near the bottom of the screen and the notification "Connected to OBDII Adapter" will appear on the status bar. (on top of the screen)Next step: 1. If the app detects some amount of gauges supported by the car, it notifies you to buy the EX GAUGE PRO version with full unlock functions 2. If the app did not detect any gauge supported by the car, it warns you do not install the EX GAUGE PRO versionThis DEMO version does not show real data. The data shown only are nature illustration. To view real and live data, please use the EX GAUGE PRO version.Privacy policyhttps://www.freeprivacypolicy.com/live/4666d76d-503f-423f-910b-6265bc12c6b1
